AMETEK Process Instruments Introduction

AMETEK PI

AMETEK Process Instruments

AMETEK 提供在线过程分析仪，用于精确测定气体中的痕量水分含量。分析范围和精度因型号而异，最高可达 2500 ppm（体积比），最低可达 <1 ppm（体积比）。

此外，AMETEK 还提供一系列基于可调谐二极管激光技术的产品。

AMETEK offers on-line process analyzers for the accurate determination of the trace moisture content of gases. Analysis ranges and accuracy vary by model from as high

as 2500 parts per million by volume down to <1 part per billion by volume. In addition, AMETEK provides a line of products based on tunable diode laser technology.

AMETEK Process Instruments 调谐二极管激光器仪器

5100型可调谐二极管激光吸收光谱（TDLAS）气体分析仪采用抽取式系统。可调谐二极管激光吸收光谱是一种高选择性、高灵敏度和多功能的气体分析痕量物质测量技术。

二极管激光器发射近红外光，由于其线宽窄、可调谐、稳定性好、结构紧凑且可在室温下工作，因此是光学光谱分析的理想选择。

Tunable Diode Laser Instrumentation

The 5100 Tunable Diode Laser Absorption Spectroscopy (TDLAS) gas analyzers use an extractive system. Tunable Diode Laser Absorption Spectroscopy is a highly selective,

sensitive and versatile technique for measuring trace species in gas analysis. The diode laser source emits in the NIR region and is ideal for optical spectroscopy

 because of its narrow line width, tunability, stability, compactness and ability to operate at room temperature.

目前有两种型号可供选择。

5100 是一款单激光、单气体分析系统，适用于露点温度高达 55ºC 的样品。5100HD 是一款双激光、多气体分析系统，适用于露点温度高达 100ºC 的样品。

另有适用于高达 150ºC 的高温版本可供选择。5100 和 5100HD 均可测量水分、甲烷、硫化氢、二氧化碳和氧气。

Currently, there are two models available. The 5100 is a single laser, single gas analyte system and is ideal for sample dewpoint temperatures up to 55ºC.

The 5100HD is a dual laser, multiple gas analyte system and is ideal for sample dew point temperatures up to 100ºC. A high temperature version up to

150ºC is also available. Both the 5100 and 5100HD can measure moisture, methane, hydrogen sulfide, carbon dioxide and oxygen

5100 和 5100HD 均内置参考池，用于在线验证；所有三款型号均具备激光线锁定功能，这是 AMETEK 5100 系列分析仪独有的特性。5100HD 可配置为双池、双流应用。

The 5100 and 5100HD have a built in reference cell for on-line verification and all three models have laser line lock function, a feature that is unique to

AMETEK 5100 series analyzers. The 5100HD can be configured for dual cells, dual stream applications.

5100系列分析仪由全封闭式光学系统、电子元件、样品处理装置和内置验证装置组成。5100和5100HD型号专为户外安装而设计，并通过了全球危险区域认证。

如需详细产品规格，请点击下方列出的激光产品。

5100 series analyzers are comprised of fully enclosed optics, electronics, sample handling and built-in verification. The 5100 and 5100HD units are designed for

 outdoor installation and are certified for worldwide hazardous area locations. For detailed product specifications, just click on one of our laser products listed below.

AMETEK PI  5100V

AMETEK Process Instruments 5100V

AMETEK PI  5100HD

AMETEK Process Instruments 5100HD

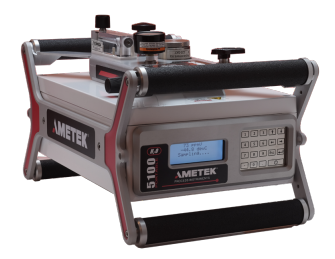

AMETEK PI  5100P

AMETEK Process Instruments 5100P

Moisture Analyzers 水分分析仪

用于精确测定气体中痕量水分含量的在线过程分析仪。分析范围和精度因型号而异，最高可达 2500 ppm（体积比），最低可达 <1 ppm（体积比）。

On-line process analyzers for the accurate determination of the trace moisture content of gases. Analysis ranges and accuracy vary by model from as high as 2500 parts per million by volume down to <1 part per billion by volume.

Stationary for Industrial and Outdoor Locations

适用于工业和户外场所的固定装置

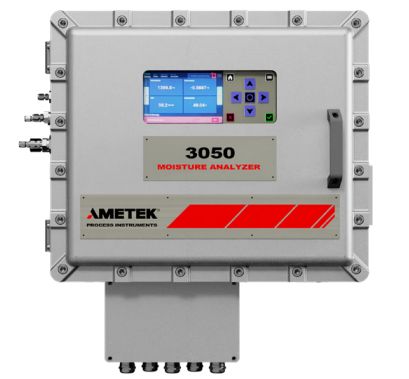

AMETEK Process Instruments 3050 水分分析仪

AMETEK PI  3050 水分分析仪

AMETEK Process Instruments 5000

AMETEK PI  5000

仪器机架和工作台的固定装置

Stationary for Instrumentation Racks & Benches

AMETEK Process Instruments 3050 水分分析仪

AMETEK Process Instruments 2850 水分分析仪

AMETEK Process Instruments 5800 水分分析仪

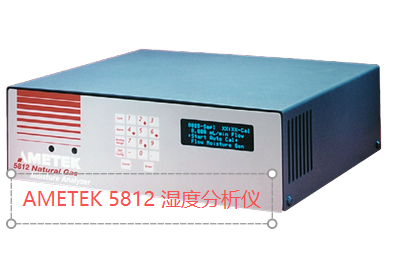

AMETEK Process Instruments 5812 水分分析仪

AMETEK Process Instruments 5830 水分分析仪

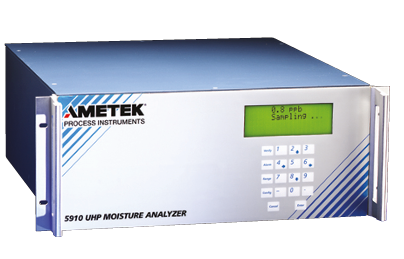

AMETEK Process Instruments 5910 超高纯水分分析仪

AMETEK Process Instruments 5920 超高纯水分分析仪

AMETEK Process Instruments Online Sulfur Analyzer  在线硫分析仪

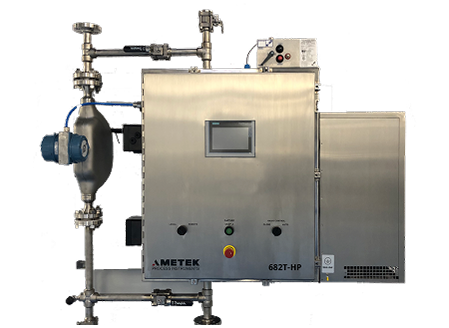

682T-HP 专为使用 X 射线透射 (XRT) 技术在线分析高粘度烃类（例如原油和残渣油）中的硫含量而设计。该系统尤其适用于高温高压样品流。

凭借其坚固耐用、久经考验的比例计数器检测器和 X 射线管光源，682T-HP 可提供卓越的分析精度，硫的检测限低至 200 ppm。

682T-HP 的主要特点包括：完全集成的密度计、自动密度补偿、触摸屏控制、密码保护和快速更新速率。

The 682T-HP is designed for the on-line analysis of sulfur in highly viscous hydrocarbons such as crude and residual oil using XRT (X-ray Transmission) technology.

 This system is ideal for high temperature and pressure sample streams. With its rugged, time-proven proportional counter detector and X-ray tube source,

the 682T-HP gives superb analytical precision with a sulfur limit of detection of 200 ppm. The 682T-HP key features include a fully integrated densitometer,

automatic density compensation, touch-screen controls, password protection and rapid update rates.

682T-HP 在线高压硫分析仪

682T-HP On-Line High Pressure Sulfur Analyzer

Thermox Oxygen analyzer CG1000，AMETEK China

AMETEK analyzers AMETEK 880NSL 分析仪配件

AMETEK氧化锆WDG1210 WDG-IV Analyzers WDG1210insitu-36  WDG210型

3050分析仪 阿美泰克880比值分析仪 880-NSL_DWG H2S在线分析仪 配件

AMETEK阿美特克密封圈42005JE

AMETEK阿美特克探头WDG 1210 INSITU O2

AMETEK阿美特克氧化锆头71785SE

AMETEK阿美特克电源控制器总成880114901S

AMETEK阿美特克湿气发生器305010901S

AMETEK阿美特克干燥器305400901S

AMETEK阿美特克除雾器880019902

AMETEK阿美特克压力表356010

Sensor cell AMETEK 305122901S 1pc.

Humidity generator AMETEK 305010901S 2pc.

AMETEK CPU board 73938SE

AMETEK CPU board 73938SE

Valve 300-4005 d/Ametek 900

Nickel-manganese lamp Ametek 300-8844

Cadmium lamp Ametek 300-2070

Magnesium lamp Ametek 100-0688

Ceramic filter Ametek 300-9266

Ametek 70986TE combustible sensor

AMETEK Pyrometer Cyclops 100L

AMETEK Thickness gauge Mahr Millimar 1240

Magnesium lamp Ametek 100-0688

Cadmium lamp Ametek 300-2070

MOTOR AMETEK/116310-00

Temperature Calibrator Ametek Jofra RTC-159

Temperature Calibrator Ametek Jofra RTC-700
